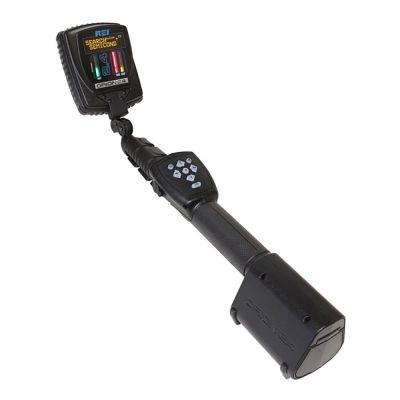

REI ORION 2.4 Non-Linear Junction Detector (NJE-24)
The ORION 2.4 HX Non-Linear Junction Detector (NLJD) detects electronic semi-conductor components in walls, floors, ceilings, fixtures, furniture, containers, or other surfaces. The ORION 2.4 HX NLJD is made to detect and locate hidden cameras, microphones, and other electronic devices regardless of whether the surveillance device is radiating, hard wired, or turned off.
Efficiency: shorter wavelength of the 2.4 GHz model does better at detecting modern, surface-mounted circuitry in normal office environments
Usability: multiple alert methods are available with a line-of-sight antenna mounted display to allow users to visualize target and display simultaneously
Portability: lightweight design is under three pounds and no assembly is required with an integrated telescoping pole
- Technical Surveillance Countermeasures (TSCM)
- Counter Surveillance
- Non-Linear Junction Detection
- Locating Hidden Electronics
- Locating Electronic Contraband
- Intelligence Protection
- Executive Protection
- Eavesdropping Detection
- Surveillance Equipment Detection
- Electronic Surveillance Detection
- Digitally modulated transmit signal, correlated 2nd & 3rd harmonic response, and adjustable DSP gain provide improved detection & minimize interference (patented)
- Histogram graph displays continuous history of harmonic response and power adjustment (patented)
- Spectrum View (HX models) shows 2nd and 3rd harmonic spectrum graphs in several display options
- 1.25 MHz-wide bandwidth transmit signal increases detection sensitivity
- Alert tones and haptic (vibration) alert can be selected to alert when signal levels surpass the trip levels
- Line-of-sight antenna mounted display and LED head lamp allows user to focus eyes on sweeping target and display at same time, even in dark areas
- Small, lightweight design weighs only 2.8 lbs/1.3 kg
- No pole or cable assembly required with integrated telescoping pole
- A synthesized transceiver with frequency stability and agility to automatically search for clean operating frequencies (2.404 GHz - 2.472 GHz)
- Circularly polarized transmit and receive antenna removes the risk of missing a threat due to incorrect antenna polarization
- Handle-mounted 2.7 inch touch screen controller display
- Antenna-mounted display
- Bar Graph Display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.)
- Frequency Bands: 2.404GHz-2.472GHZ
- Transmit Channels: Manual or auto selection, more than 60 available
- Transmit Power: 3.3 watts E.I.R.P.
- Power Control: Manual or Auto Control
- Transmit Modulation: Pulsing, Digital Spread Spectrum 1.25 MHz bandwidth
- Simultaneous 2nd & 3rd harmonic receive Digitally Correlated
- Frequency Bands: Transmit Band (2.404GHz - 2.472GHz); Second Harmonic (4.808GHz - 4.944GHz); Third Harmonic (7.212GHz - 7.416GHz)
- Sensitivity:140 dBm for both harmonics
- Battery Specifications:
- Input AC: 100–240 V, 50–60 Hz
- Run Time: >4 hours per battery (typical)
- Charge Time: 2.5 hours per battery (typical)
- Batteries: Lithium Ion Rechargeable Battery (2 included)
- Extension Lengths:16-51 in (40.6-129.5 cm)
- Overall Length Extended: 58 in (1.5 m)
- Case Dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
- ORION 2.4 Dim: 22.4 in x 3.75 in x 3 in (57 cm x 9cm x 7.5 cm)
- ORION 2.4 Weight w/Battery: 3 lbs (1.4kg)
- Case Weight Including ORION 2.4 & Accessories: 12 lbs (5.4kg)
- Operating Temperature: -10 to 50° C
- Battery Charging Temperature: 5 to 37° C
- Storage Temperature: -20 to 60° C
- 18.5" x 14.9" x 6.25"
- 12 Lbs
